产品简介:Product profile:

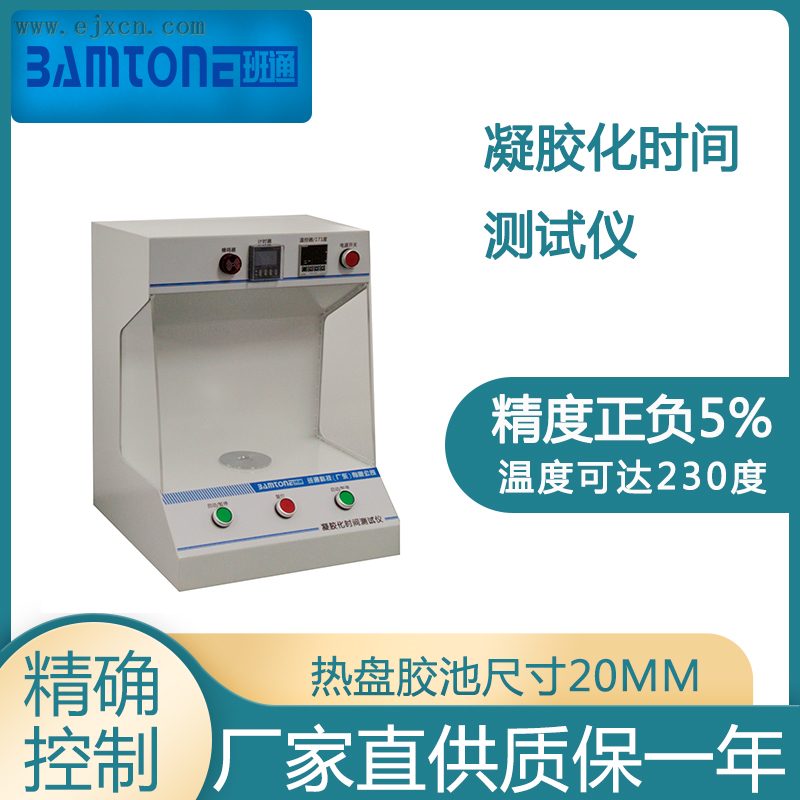

Bamtone/N01型凝胶化时间测试仪按 IPC-TM-650 试验方法手册中的试验方法 2.3.18 设计制造 , 凝胶化时间是指液态树脂或胶液在规定的温度下由能流动的液态转变成固体凝胶所需要的时间。对于热固性树脂，是指从添加催化剂后到形成凝胶所需要的时间。
The Bamtone / N01 gel time tester is designed and manufactured according to the test method 2.3.18 in the IPC-TM-650 Test Method Manual. The gel time is the time required for the liquid resin or adhesive liquid to change from a flowing liquid to a solid gel at the specified temperature. For the thermosetting resin, the time taken from the addition of the catalyst to the formation of the gel is indicated.
二、产品功能：product function:
用于测试半固化片及树脂的凝胶化时间，检验多层板压合用粘接片凝胶化时间，以确保生产所用的原材料性能。
To test the gelation time of the semi-cured sheets and resin, and to test the gelation time of the adhesive sheets to ensure the performance of the raw materials used in production.
三、应用范围：applied range:
应用于PCB生产工艺过程中对多层板压合用粘接片凝胶化时间检测。
It is used to detect the gelation time of the adhesive sheet in the PCB production process.
四、产品特点：Product features:
1、配有必需的各种测试工具(取样勺、过滤筛网、石蜡)
Equipped with various required test tools (sample spoon, filter screen, paraffin)
2、温控器采用，数字式显示，PID控制，对胶池温度进行精确控制，精度可达±0.5℃。
The temperature controller adopts, digital display, PID control, accurate control of the rubber pool temperature, the accuracy can reach ± 0.5℃.
3、操作简单方便，左右设计两个START/STOP控制按钮，适应左右手习惯不同实验操作人群。
The operation is simple and convenient, and two START / STOP control buttons are designed for the left and right hands to adapt to different experimental operators.
4、硕大LED液晶数字显示，外观新颖美观。
Large LED LCD digital display, novel and beautiful appearance.
五、产品参数Product Parameter:
1、热盘控温精度： ± 0.5 ℃，热盘温度最小读数 : 0.1 ℃，工作温度 : 230 ℃最大
Hot disk temperature control accuracy: ± 0.5℃, minimum hot disk temperature reading: 0.1℃, operating temperature: 230℃ maximum
2、时钟计时 : 0-999.9 秒
Clock timing: 0-999.9 seconds
3、热盘胶池尺寸 : φ 20.0mm
Size of hot plate rubber tank: φ 20.0mm
4、供电 : 220V,50Hz,300W, 单相
Power supply: 220V, 50Hz, 300W, single-phase
5、尺寸size : 310 × 310 × 410mm(W × D × H)
6、重量weight : 11.5kg
